KFH246USEC/74 – Black metal finish, Twin 13amp UK sockets and Cat6 data – Security lock

Data sheet | Fitting Instructions

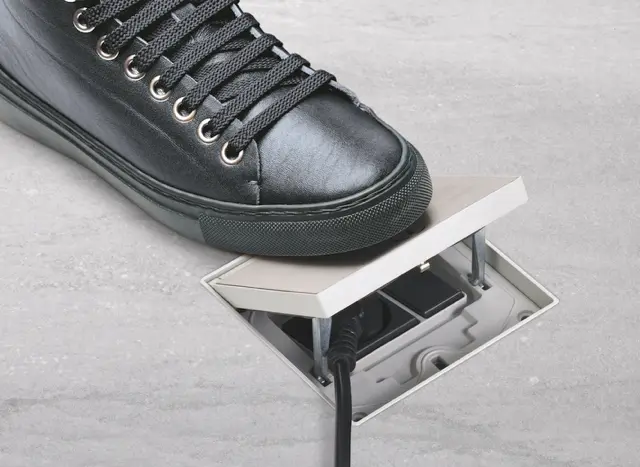

The KFH246USEC/74 features 2no. 13amp sockets (unswitched) and 2no. Cat6 data sockets ( Unwired) housed in a Black IP66 rated top section.  This top section must be fitted to either a screed back box ref: KGT200/74 or a cavity floor back box ref:KGT200RF/74. When closed the outlet achieves an IP66 rating. When in use the lid sits partially open. To prevent unauthorised access into the floor outlet the lid is fitted with an Allen key security lock. The blanked space can be adapted for either a data socket or a charging USB outlet.

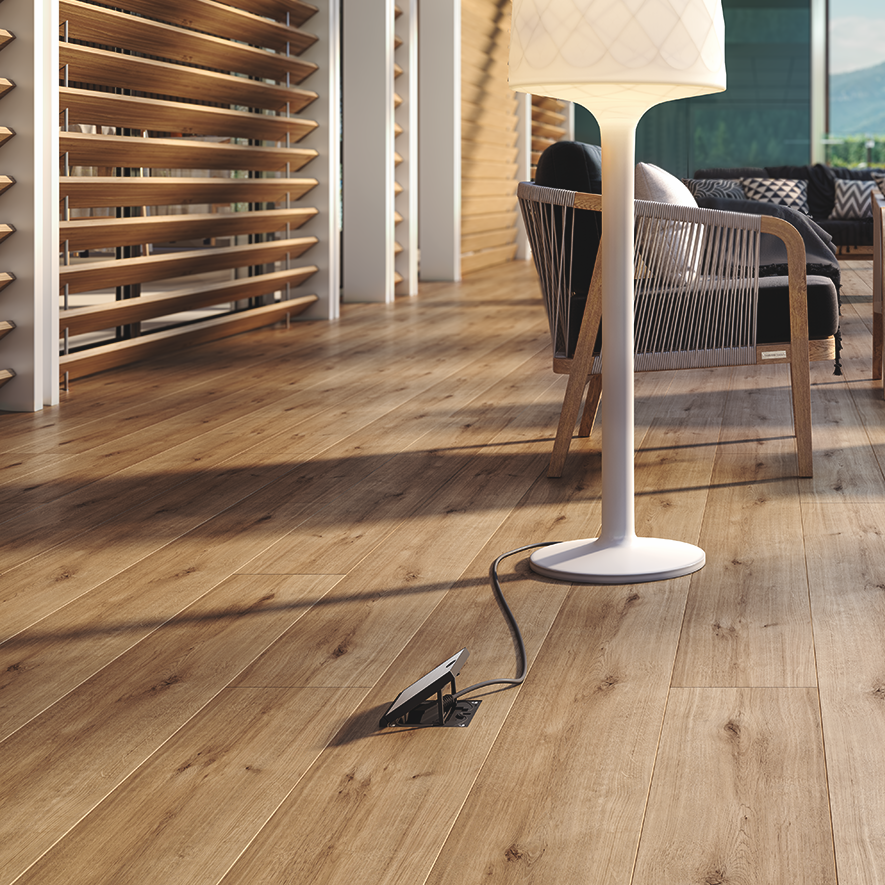

The “Simon-Box” is an ideal solution for power outlets in open floor areas which require wet wash cleaning. Simon-Boxes are installed in a wide range of projects including airports, shopping centre concourse areas, car showrooms, hotels and department stores.  They are a perfect power source for pop-up display areas and help eliminate the danger of trailing cables. The Simon IP66 floor outlet is specified and installed in thousands of projects around the world and is a proven solution for areas where water ingress is of concern. The new KGT range combines technical performance with aesthetic good looks. Its sleek minimalist appearance is designed to quietly blend into the surrounding floor surface.

The Simon-Box outlet is available on-line or through your local electrical wholesaler.
