KSE0SEC/23/71 – Brass finish – Custom socket – Security lid lock

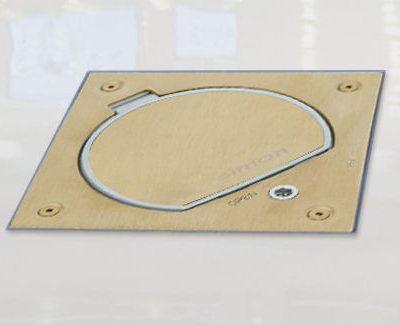

KSEOSEC/23/71 Brass IP66 SIMONBOX watertight single gang socket outlet with security lid lock mechanism.
Prevents unauthorised access to the power socket.

Data sheet | Fitting Instructions

Single gang floor outlet has a 45mm x 45mm empty mosaic opening to allow for custom socket selection.
The Brass top section requires either a screed (KGE170/23) or raised floor (KGE170TF/23) back box.

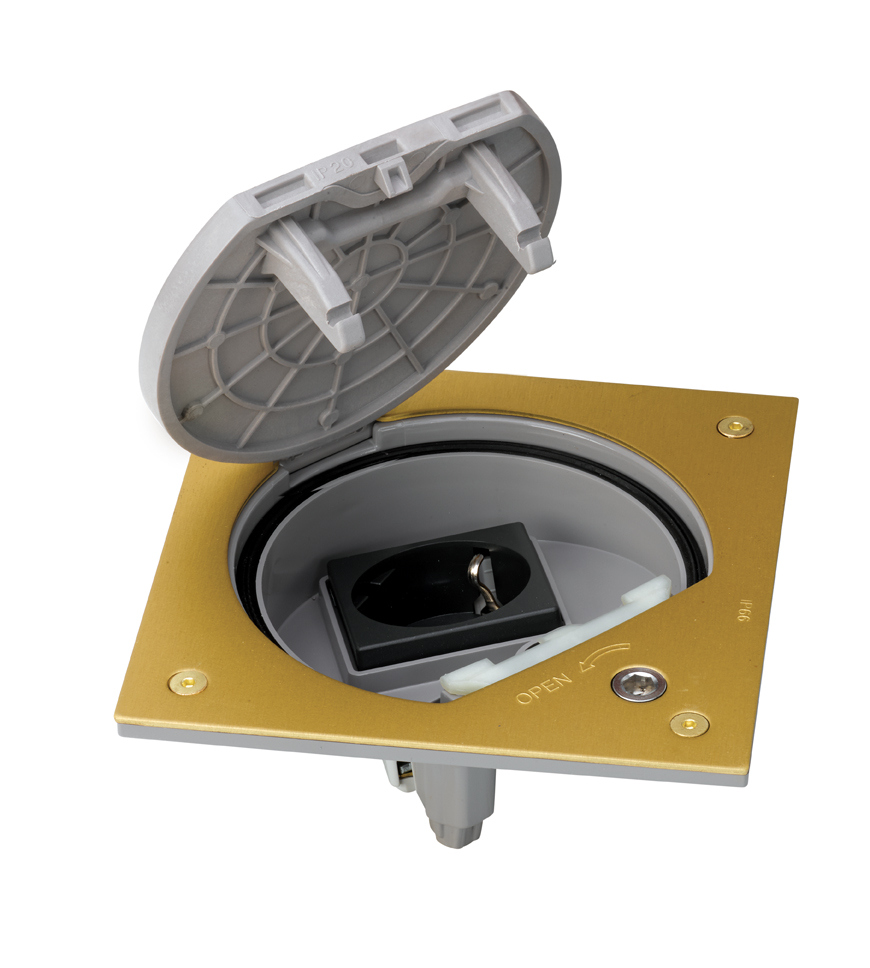

A 6mm allen key mechanism opens the security lid lock. The lid when in use sits locked in a partially open position. This locking mechanism prevents both the plug top from being crushed and the lid from being kicked open or broken. A manual lock option is also available , see KSE0/23/71. For the stainless steel option change the “71” ref to “72”.

Typical installation areas include Airports, Car Showrooms, Department Stores, Shopping Centre Concourse Areas, Decking and Terrace Areas.

SKU: brass-ip-rated-outlet-with-security-lid Categories: Original KSE Range, Single Brass

The KSE0SEC/23/71..
• Features a 6mm Allen Key security lock opening
• Internal 45mm x 45mm K45 mosaic aperture to accept a mosaic socket insert. Socket options: UK 13amp, UK 5amp, Euro Schuko, USA 110v, Charging USBa and Data & audio
• Internal surface plate slopes towards a weep hole at the rear of the box
• When in use unit meets IP20 rating. For additional strength the hinged lid is also supported on 2 pillars when in use
• Maximum load – closed 1000kg – open 170kg
• Top section must be used with the appropriate back box either Screed KGE170/23 or Flange Supported KGE170TF/23
• The ACSE clip joins two or more KGE170/23 back boxes to form a socket pod

Dimonsions: 135mm x 135mm

Finish: Brass

Unit Weight: 400g
