KSE0/23/71 – Brass finish – IP66 – Custom socket selection

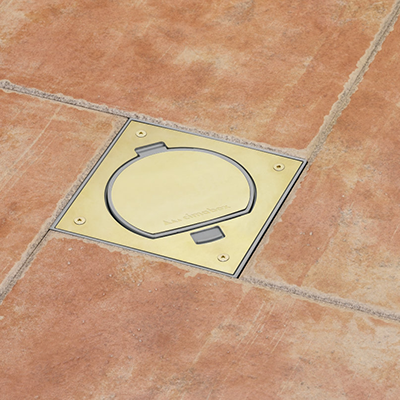

KSEO/23/71 Brass IP66 rated floor outlet

The IP66 single gang brass floor outlet has an empty 45mm x 45mm mosaic opening to accept a K45 socket insert. Socket options -13amp ( LG001) , 5 amp (LG005), European Schuko, US 110V, USB Charging, plus a range of data and audio options.

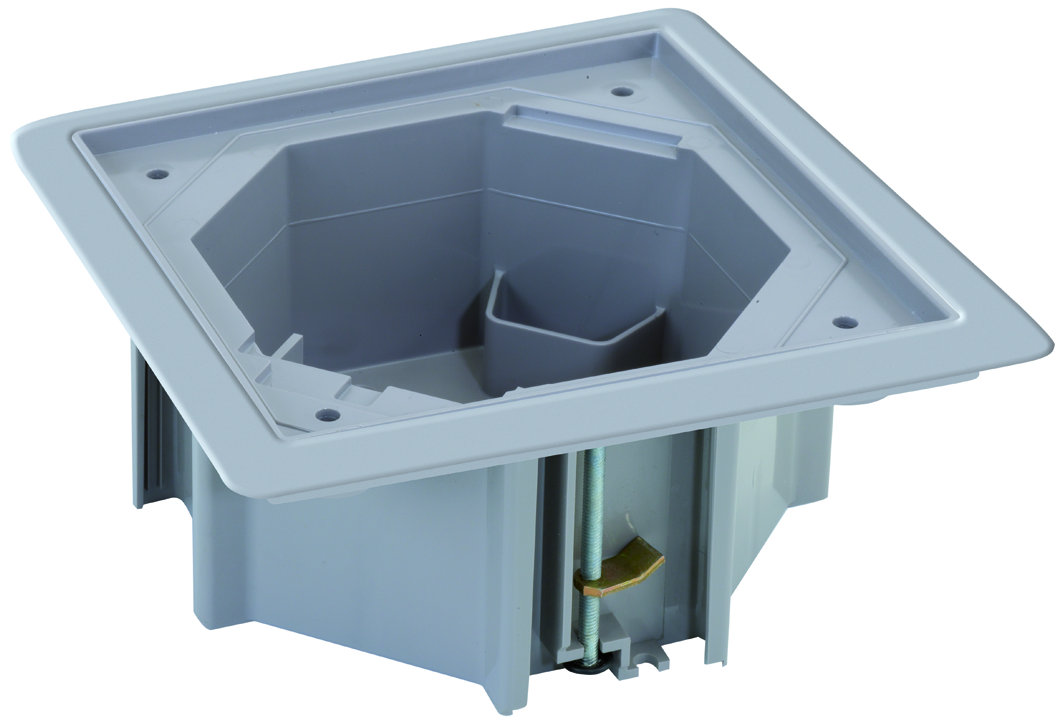

The Brass top section requires either a screed (KGE170/23) or raised floor (KGE170TF/23) back box.
A finger slide mechanism opens the lid. The lid when in use sits locked in a partially open position. This locking mechanism prevents both the plug top from being crushed and the lid from being kicked open or broken. A security lock option is also available , see KSE0SEC/23/71.

Typical installation areas include Airports, Car Showrooms, Department Stores, Shopping Centre Concourse Areas, Decking and Terrace Areas.

SKU: brass-ip-single-gang-floor-outlet Categories: Original KSE Range, Single Brass

KSEO/23/71 Brass IP rated floor outlet

Typical installation areas include Airports, Car Showrooms, Department Stores, Shopping Centre Concourse Areas, Decking and Terrace Areas.
• Brass Top Section (Ref:KSEO/23/71)
• Sits flush to surrounding surface finish when fitted in screed back box ref KGE170/23
• Internal 45mm x 45mm mosaic opening to accept either 13amp (KSE4/23/71) or 5amp(KSE5/23/71) or data sockets (single or twin)
• Internal surface plate sloped towards the rear of the mechanism with a built-in weep hole
• When the unit is in use the lid sits proud of the surface offering an IP20 protection level
• Maximum load – closed 1000kg – open 170kg
• Top section must be used with the appropriate back box either KGE170/23 (Screed) or KGE170TF/23 (Raised Floor)
• ACSE joiner clip links screed back boxes together to form an outlet pod

Stainless steel Option – KSE0/23/72

Dimensions: 135mm x 135mm

Finish: Brass (71)

Unit Weight: 400g
