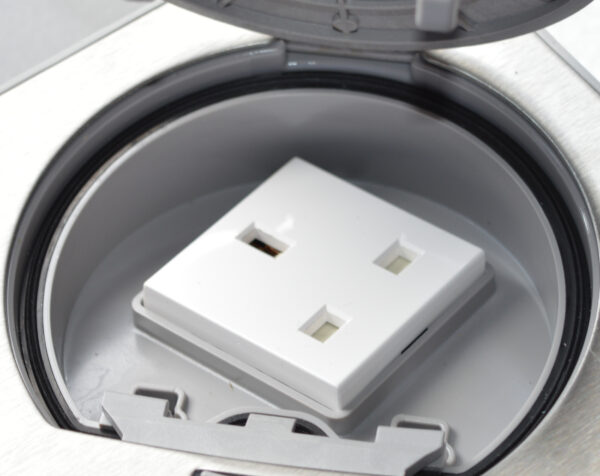

The KSE4SEC/23/72 Stainless steel top section is fitted with a 13amp power socket and a security lid lock to prevent unauthorised access to the 13amp socket. A 6mm allen key is required to open and close the outlets lid.
The top section requires a back box. For screed floors select KGE170/23 and for cavity floors KGE170TF/23.

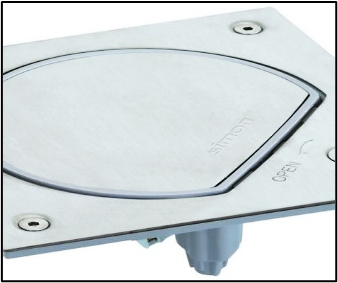

When closed the screed version sits flush within the floor surface and achieves an IP66 waterproof and dust seal rating. When in use and open it is IP20 rated.
The cavity floor version sits slightly above the surrounding floor surface. When in use the open lid is locked into an open position and protects the plug top from accidental foot traffic.
The complete unit also features an internal drainage system which is designed to guide any water that enters the outlet away from the power socket and into an internal reservoir which in turn can be plumbed to expel water from the outlet.
The Simon-box is installed in a wide range of commercial and domestic projects. It allows for the safe wet wash cleaning of hard floor areas and provides convenient power points in open floor areas. No trailing cables just easy and safe access to power whenever needed.
COLOUR: Stainless steel
CUT OUT REQ.: 135 x 135mm
