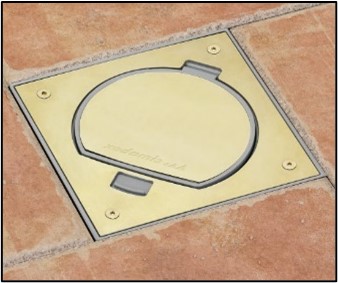

The KSE4SEC/23/71 brass top section is fitted with a UK 13amp power socket and a security lid lock to prevent unauthorised access to the socket. A 6mm allen key is required to open and close the outlets lid.

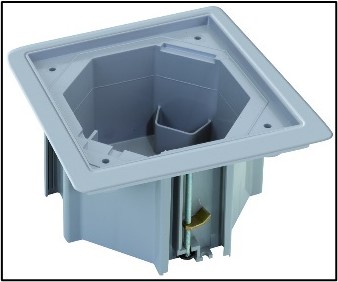

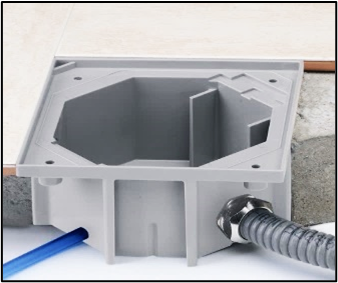

The top section requires a back box. For screed floors select KGE170/23 and for cavity floors KGE170TF/23.
When closed the screed version sits flush within the floor surface and achieves an IP66 waterproof and dust seal rating. When in use and open it is IP20 rated.
The cavity floor version sits 3mm above the surrounding floor surface ( Depth of the flange). The screed version sits flush within the surrounding floor surface. When in use, the open lid is locked in a partially open position and protects the plug top from accidental foot traffic.
The assebled unit features an internal drainage system which is designed to guide any water away from the power socket and into an internal reservoir which in turn can be plumbed to expel water from the outlet.
The Simon-box is installed in a wide range of commercial and domestic projects. It allows for the safe wet wash cleaning of hard floor areas and provides convenient power points in open floor areas. No trailing cables just easy and safe access to power whenever needed.
Finish: Brass
Dimensions: 135 x 135mm
