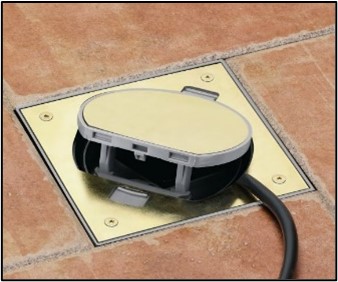

KSE4/23/71 Brass finish – UK 13amp socket – Manual lock

The KSE4/23/71 Brass top section is supplied with a UK 13amp socket. When closed the outlet achieves an IP66 waterproof and dust rating. When open and in use it is IP20 rated.
Typical installation areas include – Airports, Car Showrooms, Shopping Centres, Super Markets, Concourse areas. The top section is also available with a brass finish(71)- KSE4/23/71

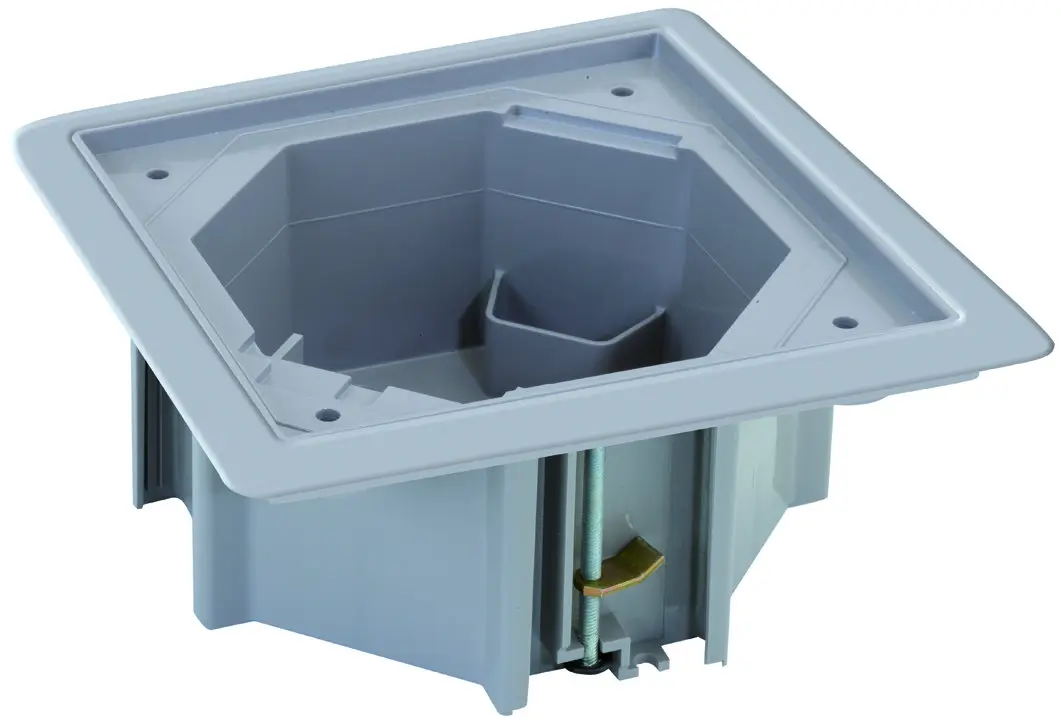

Note the top section requires a separate back box for either screed floor installations KGE170/23 or raised floors KGE170TF/23. In a screed floor setting where 2 or more outlets are required in a group the back boxes can be joined together using an ACSE joiner clip.

KSE4/23/71 Brass finished IP66 rated floor outlet is supplied with a 13amp single socket and manual lid lock.
Typical installation areas include – Airports, Car Showrooms, Shopping Centres, Super Markets, Concourse areas and Outdoor Terrace/Deck areas.

• Sits flush to surrounding surface finish when fitted to Screed back box KGE/170/23
• Manual slide lock to open and close the watertight lid
• Internal 45mm x 45mm mosaic aperture is fitted with a UK13amp socket
• Below the lid the surface plate slopes towards a weep hole at the rear of the top section and forms part of the boxes drainage system
• When in use unit meets IP20 rating. For additional strength the hinged lid is also supported on 2 pillars when in use
• Maximum load – closed 1000kg – open 170kg
• Top section must be used with the appropriate back box either Screed KGE/170/23 or Flange Supported KGETF/23

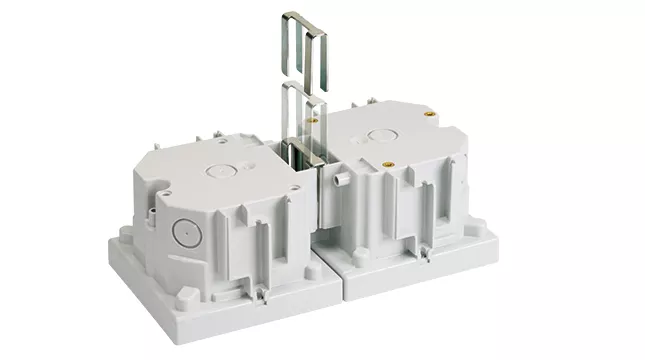

• The ACSE clip joins two or more KGE/170 back boxes to form a socket pod

Finish: Brass

Dimensions: 135mm x 135mm

Unit Weight: 400g
