KSE0SEC/23/72 -Stainless steel – IP66 rated – Security lid lock

KSEOSEC/23/72 ( Stainless steel) Single Socket IP rated floor outlet with “Security” lid lock. The outlet is supplied with an empty 45mm x 45mm mosaic opening for custom socket population.

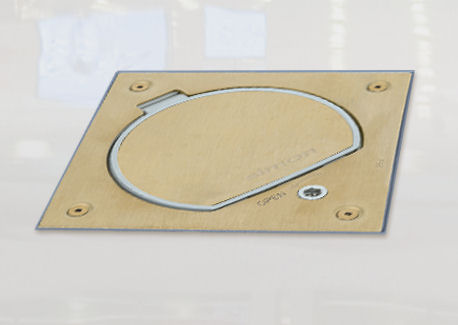

Typical installation areas include – Airports, Car Showrooms, Shopping Centres, Super Markets, Concourse areas. The top section is also available with a brass finish(71)- KSE0/23/71

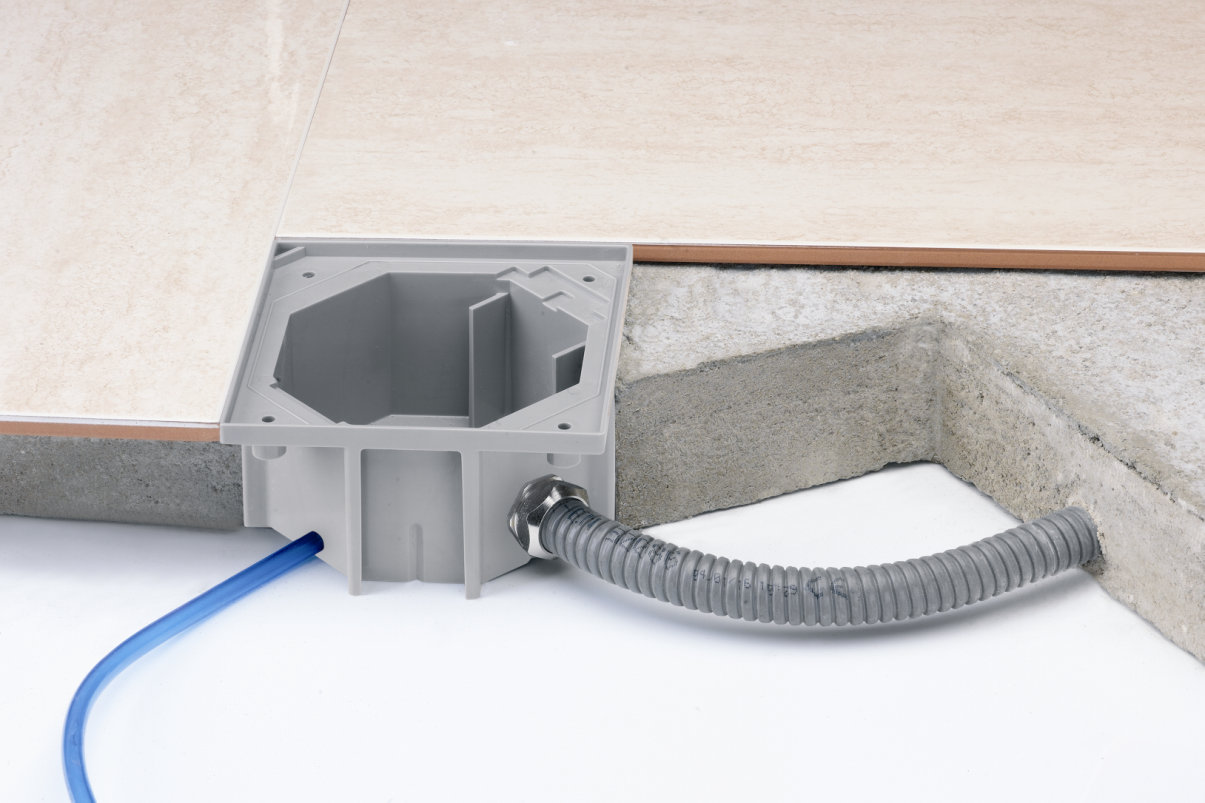

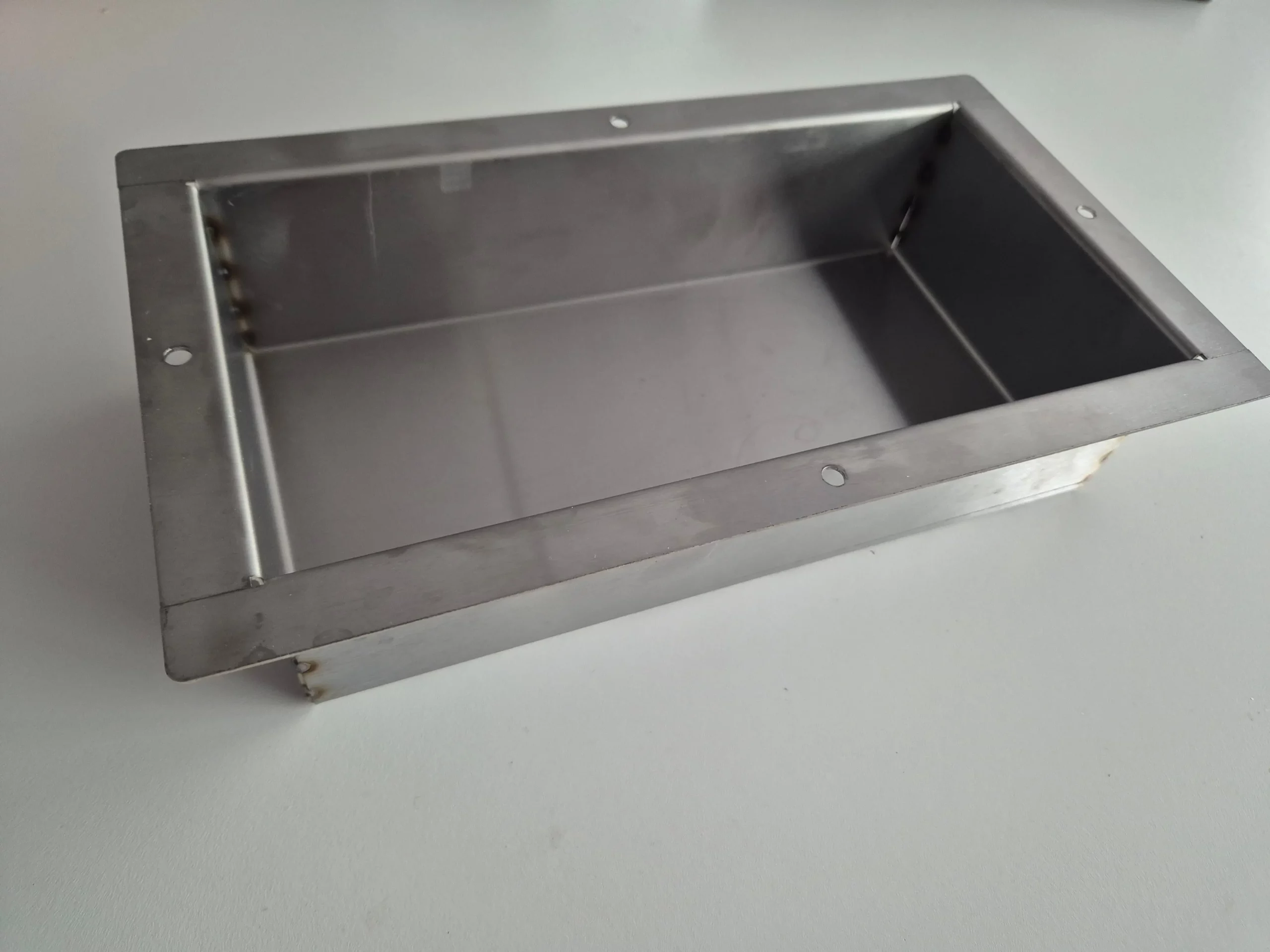

Note the top section requires a separate back box for either screed floor installations KGE170/23 or raised floors KGE170TF/23. In a screed floor setting where 2 or more outlets are required in a group the back boxes can be joined together using an ACSE joiner clip.

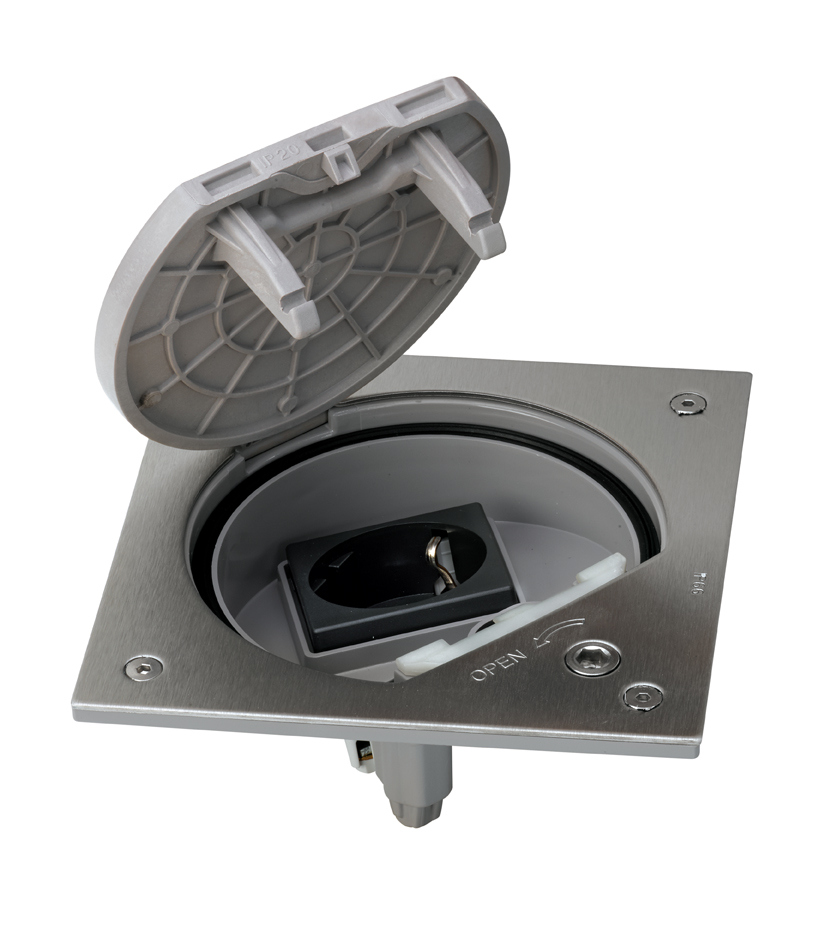

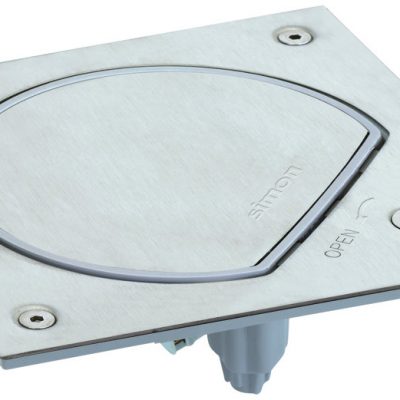

KSEOSEC/23/72 Single Socket IP rated floor outlet with “Security” lid lock
Typical installation areas include – Airports, Car Showrooms, Shopping Centres, Super Markets, Concourse areas and Outdoor Terrace/Deck areas.

• Sits flush to surrounding surface finish when fitted to Screed back box KGE/170/23
• Allen Key security lock opening
• Internal 45mm x 45mm mosaic aperture to accept mosaic socket ( UK 13amp- KSE4, UK 5 amp-KSE5, Schuko -KSE1 , US 110v- KSE6 )
• Internal surface plate slopes towards a weep hole at the rear of the box
• When in use unit meets IP20 rating. For additional strength the hinged lid is also supported on 2 pillars when in use
• Maximum load – closed 1000kg – open 170kg
• Top section must be used with the appropriate back box either Screed KGE/170/23 or Flange Supported KGETF/23
• The ACSE clip joins two or more KGE/170 back boxes to form a socket pod

Finish: Stainless steel

Dimensions: 135mm x 135mm

Unit Weight: 400g
