KFH240/74

KFH240/74

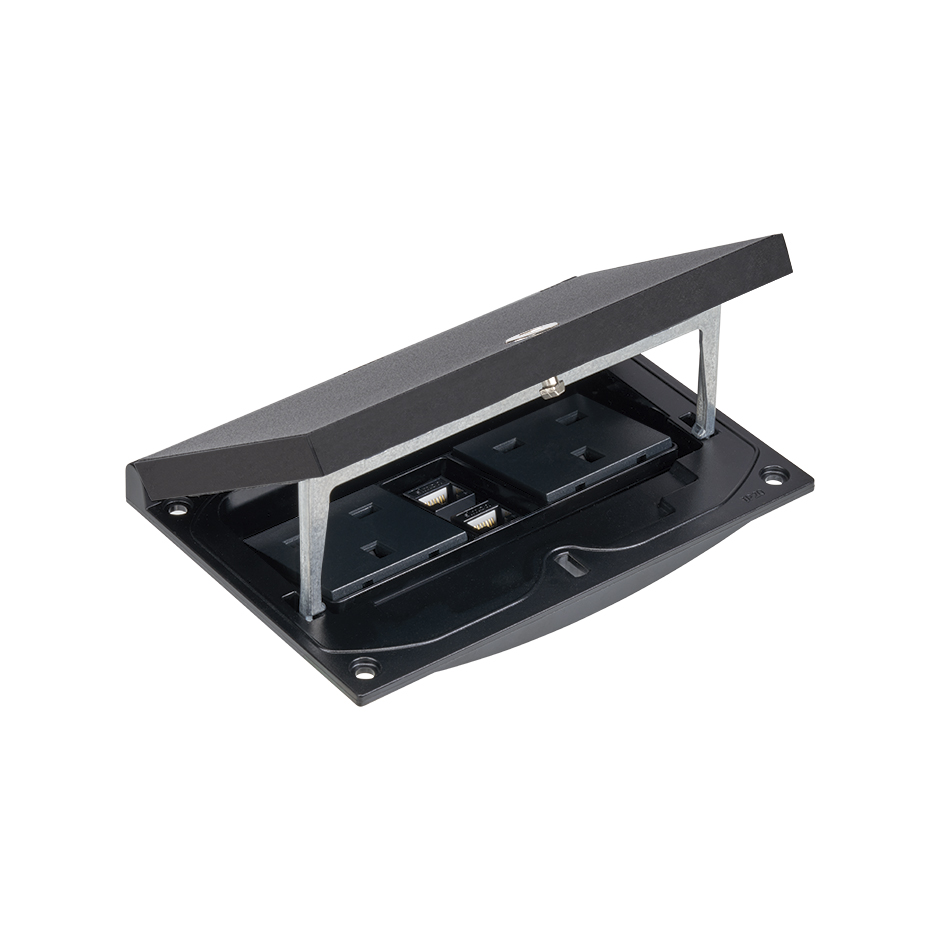

The KFH240/74 features 2no 13amp sockets and a blanked data space housed in a Black IP66 rated top section. This top section must be fitted to either a screed back box ref: KGT200/74 or a cavity floor back box ref:KGT200RF/74. When closed the outlet achieves an IP66 rating. When in use the lid sits partially open. A simple manual twisk lock opens and closes the lid. The blanked space can be adapted for either a data socket or a powered USB outlet.

The “Simon-Box” is an ideal solution for power outlets in open floor areas which require wet wash cleaning. Simon-Boxes are installed in a wide range of projects including airports, shopping centre concourse areas, car showrooms and department stores. They are an ideal power source for pop-up display areas and help eliminate the danger of trailing cables. The Simon IP66 floor outlet is specified and installed in thousands of projects around the world and is a proven solution for areas where water ingress is a concern.

The new KGT range combines technical performance with aesthetic good looks. Its sleek minimalist appearance is designed to quietly blend into the surrounding floor surface.

The Simon-Box outlet is available on-line or through your local electrical wholesaler.

Surface Colour – Black

The KFH240/74 twin top section is designed in accordance with the safety requirements of Directive 2006/95/CE (Low Voltage) through compliance with UNE-EN standard 60.670. CE and UKCA marked. The manual locked top section is supplied with 2no 13amp unswitched sockets and a Cat6 data module.

Closed Box	Open Box
-IP66 Protection Grade	-IP20 Protection Grade (IP54 with accessory)
-IK08 Impact Protection Grade	– IK07 Impact Protection Grade
-Maximum weight per area unit: 12kg/cm2	-Maximum weight per area unit: 4kg/cm2
-Maximum total weight – 2000kg	-Maximum total weight – 250kg

The manual turn locking top section will requires a metal edge such as a small coin to facilitate the opening and closing of the floor outlet. When in use, the lid is supported by a sprung metal pedestal bracket which holds the lid in a partially open position. Note when open the unit is only IP20 rated. The back box is supplied with drainage options. Fitting instructions should be fully followed. The outlet will also benefit from occassional cleaning to remove dirt and grime build up.
