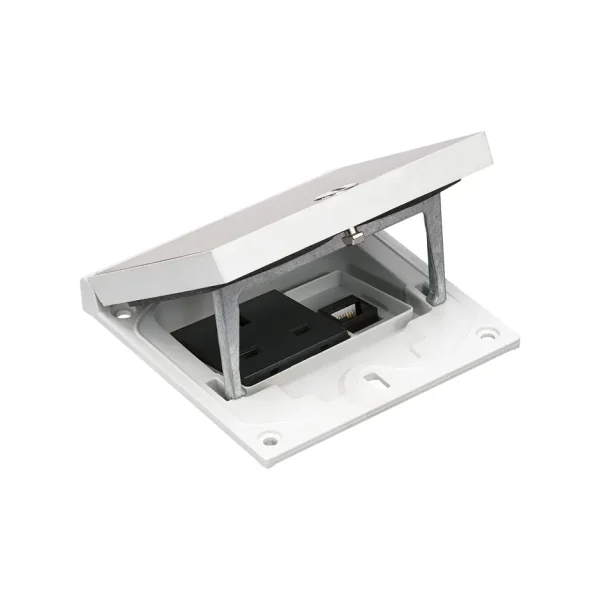

KFH146USEC/72- Stainless steel finish- 1no. 13amp UK socket and Cat6 data – Security locked top section

Stainless Steel covered mini IP66 watertight floor outlet with a single 13amp socket and a Cat6 data outlet. The lid is opened and closed using a 6mm Allen key lock mechanism.

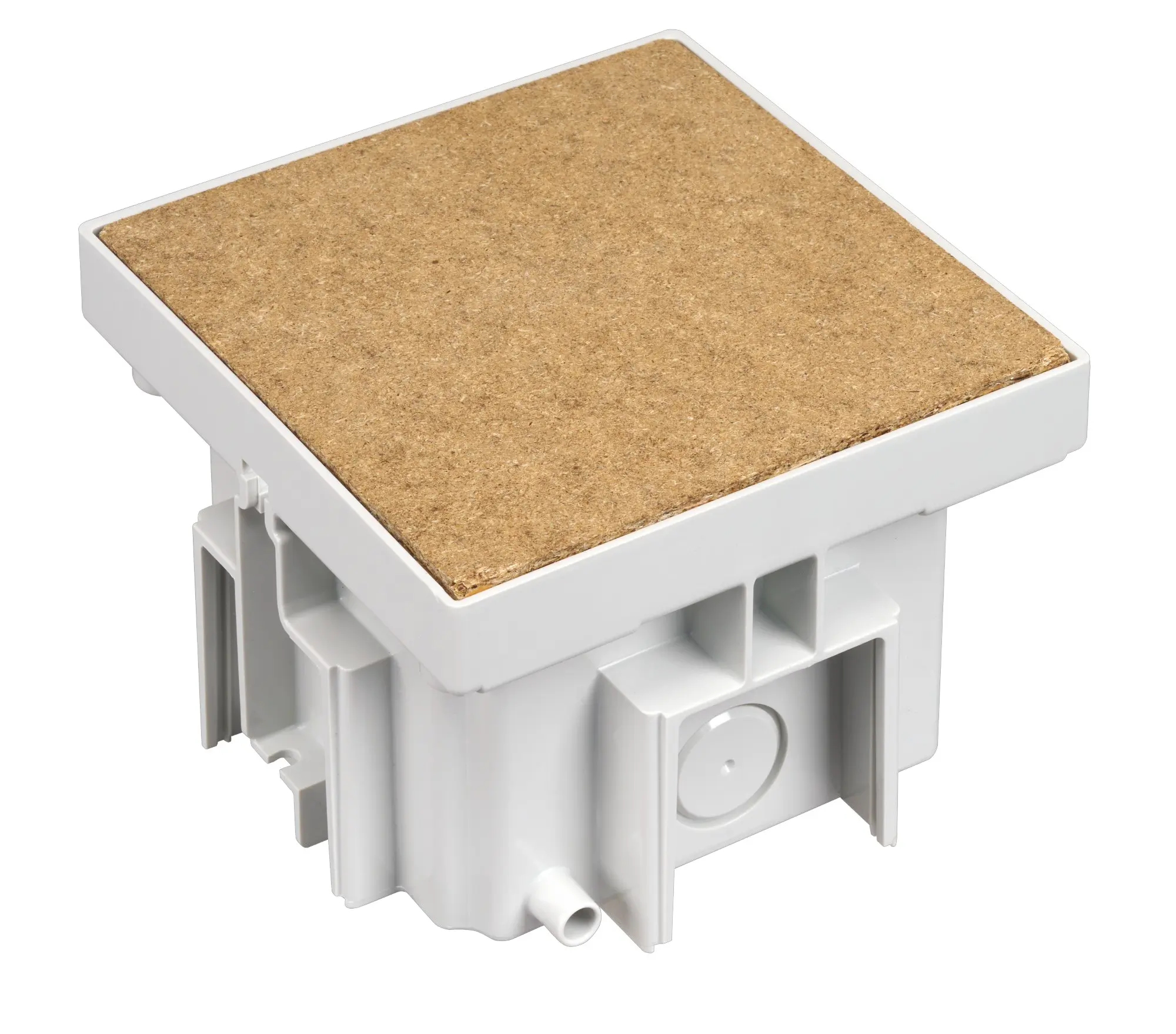

The top section requires either a screed (KGT100/72) or cavity floor (KGT100RF/72) back box. When closed, the outlet achieves an IP66 rating and when open IP20.
The Simon-Box is installed in a wide range of projects and is an ideal choice for areas which would benefit from in floor power, and which require to be occasionally wet washed.

The KFH146USEC/72 brushed stainless steel top section is designed in accordance with the safety requirements of Directive 2006/95/CE (Low Voltage) through compliance with UNE-EN standard 60.670. CE and UKCA marked. The security locked top sectionis supplied 2no 13amp UK unswitched sockets and a Cat6 data module.

Closed Box	Open Box
-IP66 Protection Grade	-IP20 Protection Grade (IP54 with accessory)
-IK08 Impact Protection Grade	– IK07 Impact Protection Grade
-Maximum weight per area unit: 12kg/cm2	-Maximum weight per area unit: 4kg/cm2
-Maximum total weight – 1500kg	-Maximum total weight – 250kg

A 6mm Allen Key twist/turn key lock prevents unauthorised access to the floor outlet. When in use, the lid is supported by a sprung metal pedestal bracket which holds the lid in a partially open position. Note when open the unit is IP20 rated. The back box is supplied with drainage options. Fitting instructions should be fully followed.

Overall Dimensions:

Screed Type – 115mm x 115mm

Cavity Type – 148mm x 148mm

Overall depth – 80mm
