KFH140SEC/74 – Black metal finish, 13amp UK socket and Blank – Security lock

Data sheet | Fitting Instructions

KFH140SEC/74 – Black single top section with security lid lock. Internally the unit has a 13amp socket and blank data module.  The blanked data space can, if required, accept a data  or charging USB module. The top section must be used with either the screed back box (KGT100/74) or cavity floor back box (KGT100RF/74)

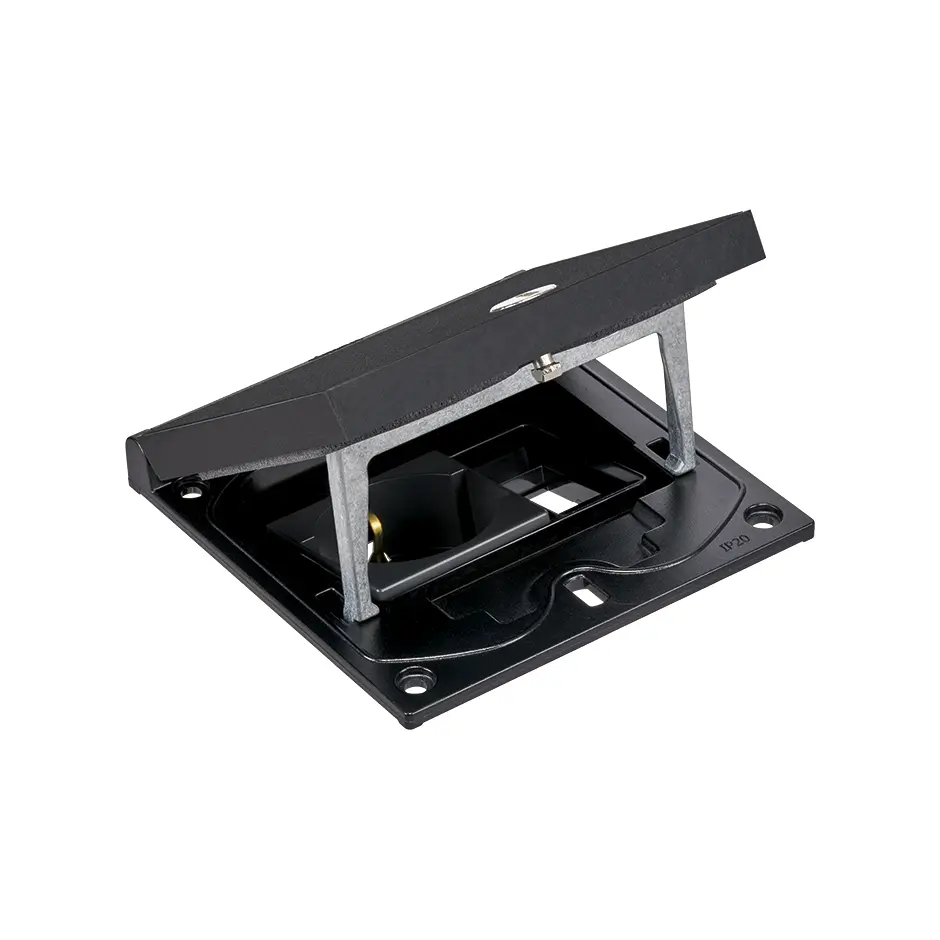

The sleek black finish designed to complement a wide scope of floor finishes. The 6mm Allen key activated opening/closing lock allows easy access to the sockets while discouraging unauthorized access. When in use, the lid is anchored in a partially open position.

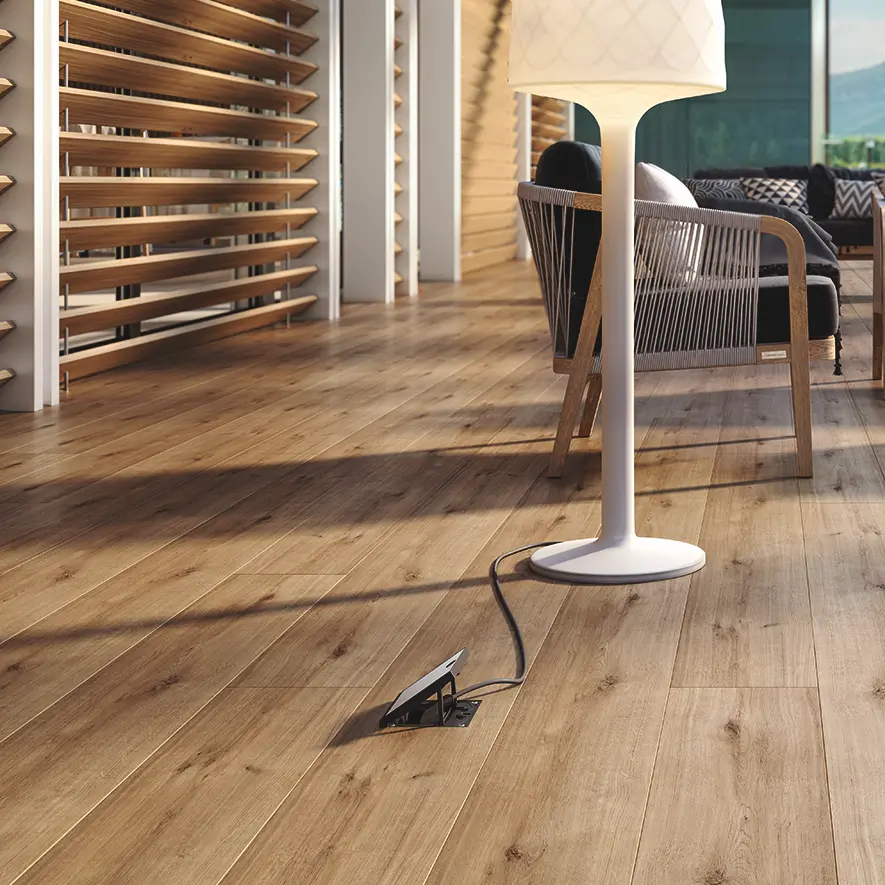

The Simon-Box is installed in a wide range of projects and is an ideal choice for areas which would benefit from in floor power that require to be occasionally wet washed. Project examples include Airport concourse areas, retail and car showrooms, hotels, stadiums and private homes.

Categories: , , , , ,

The KFH140SEC/74 single top section is designed in accordance with the safety requirements of Directive 2006/95/CE (Low Voltage) through compliance with UNE-EN standard 60.670. CE and UKCA marked. The manual locked top section is supplied with 2no 13amp unswitched sockets and a Cat6 data module.

Closed Box Open Box
-IP66 Protection Grade -IP20 Protection Grade (IP54 with accessory)
-IK08 Impact Protection Grade – IK07 Impact Protection Grade
-Maximum weight per area unit: 12kg/cm2 -Maximum weight per area unit: 4kg/cm2
-Maximum total weight – 1500kg -Maximum total weight – 250kg

A 6mm Allen key lock prevents unauthorised access to the floor outlet. When in use, the lid is supported by a sprung metal pedestal bracket which holds the lid in a partially open position. Note when open the unit is only IP20 rated. The back box is supplied with drainage options. Fitting instructions should be fully followed.

Overall Dimensions:

Screed Type – 115mm x 115mm

Cavity Type – 148mm x 148mm

Overall depth – 80mm
