KFH140/72 – Single 13amp socket in a stainless steel top section – Manual Twist Lock

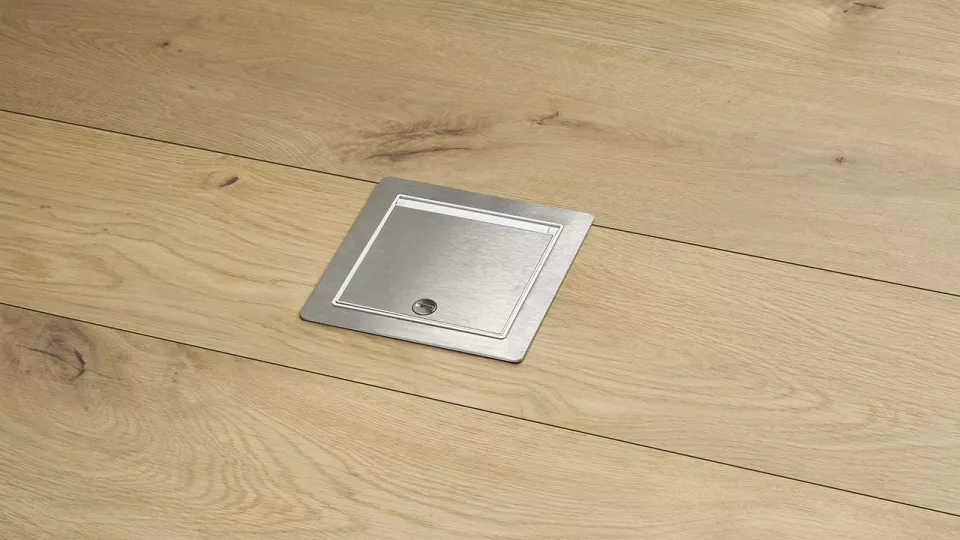

Stainless Steel covered mini IP66 watertight floor outlet with a single 13amp socket and a blanked data space. The lid is opened and closed using a simple turn lock mechanism.

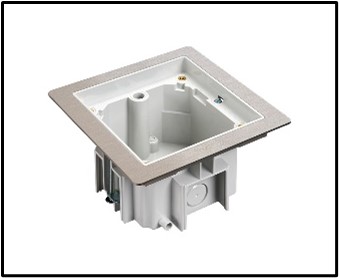

The top section requires either a screed (KGT100/72) or cavity floor (KGT100RF/72) back box. When closed, the outlet achieves an IP66 rating and when open IP20.

The Simon-Box is installed in a wide range of projects and is an ideal choice for areas which would benefit from in floor power and which require to be occasionally wet washed.

If required, the blanked 22.5mm x 45mm opening can be fitted with a data or charging USB outlet.

Stainless steel top section with blanked data space.

The KFH140/72 single brush stainless steel top section is designed in accordance with the safety requirements of Directive 2006/95/CE (Low Voltage) through compliance with UNE-EN standard 60.670. CE and UKCA marked. The security locked top section is supplied with a 13amp unswitched sockets and a 22.5 x 45mm blank space module.

Closed Box	Open Box
-IP66 Protection Grade	-IP20 Protection Grade (IP54 with accessory)
-IK08 Impact Protection Grade	– IK07 Impact Protection Grade
-Maximum weight per area unit: 12kg/cm2	-Maximum weight per area unit: 4kg/cm2
-Maximum total weight – 1500kg	-Maximum total weight – 250kg

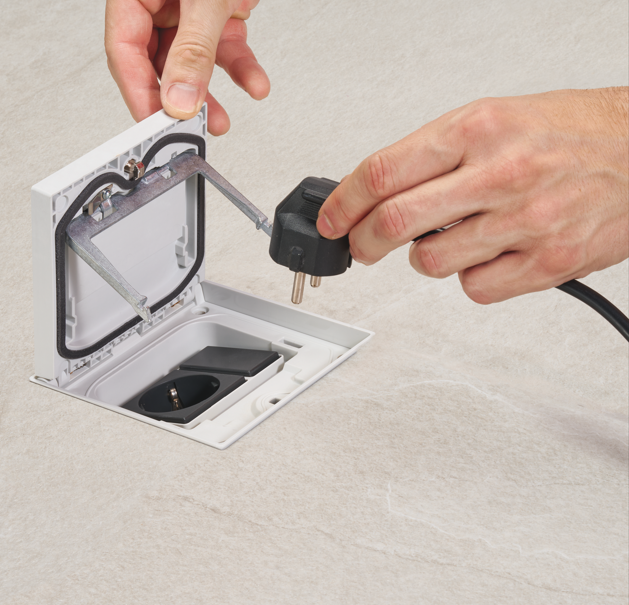

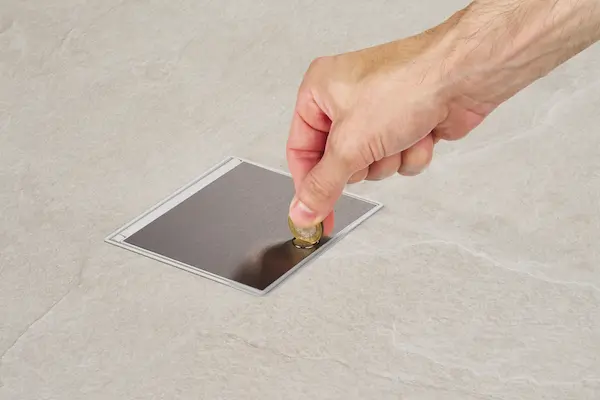

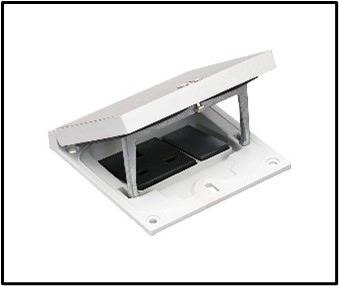

A manual twist/turn key lock prevents unauthorised access to the floor outlet. When in use, the lid is supported by a sprung metal pedestal bracket which holds the lid in a partially open position. Note when open the unit is IP20 rated. The back box is supplied with drainage options. Fitting instructions should be fully followed.

Overall Dimensions:

Screed Type – 138mm x 138mm

Cavity Type – 148mm x 148mm

Overall depth – 80mm
