KFH100/72 – Empty manual opening Top Section – Stainless steel

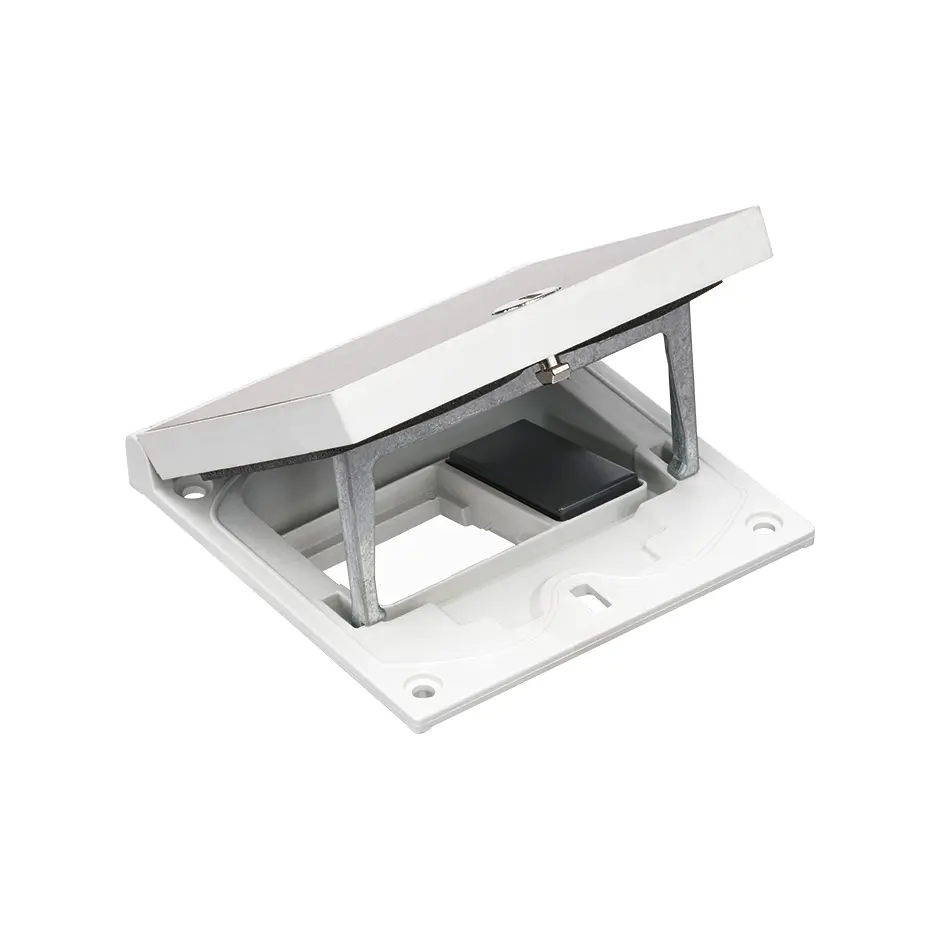

KFH100/72 – Stainless steel single top section with manual lid lock. Internally the unit has a 45mm x 45mm and 22.5mm x 45mm empty openings to accept K45 socket inserts for custom socket configuration. Available sockets include 13amp UK , 5amp UK, Schuko and Charging USB plus either Cat or Cat6 data sockets. This top section must be used with either the screed back box – KGT100/72 or raised floor back box – KGT100RF/72
The sleek brushed stainless steel finish designed to compliment a wide scope of floor finishes. Manual twist opening/closing lock.

The Simon-Box is installed in a wide range of projects and is an ideal choice for areas which would benefit from in floor power, and which require to be occasionally wet washed.

The KFH100/72 top section is designed in accordance with the safety requirements of Directive 2006/95/CE (Low Voltage) through compliance with UNE-EN standard 60.670. CE and UKCA marked.
The manual locked top section has 1no unpopulated 45mm x 45mm and 1no. 22.5mm x 45mm module openings for custom population.

Closed Box	Open Box
-IP66 Protection Grade	-IP20 Protection Grade (IP54 with accessory)
-IK08 Impact Protection Grade	– IK07 Impact Protection Grade
-Maximum weight per area unit: 12kg/cm2	-Maximum weight per area unit: 4kg/cm2
-Maximum total weight – 1500kg	-Maximum total weight – 250kg
