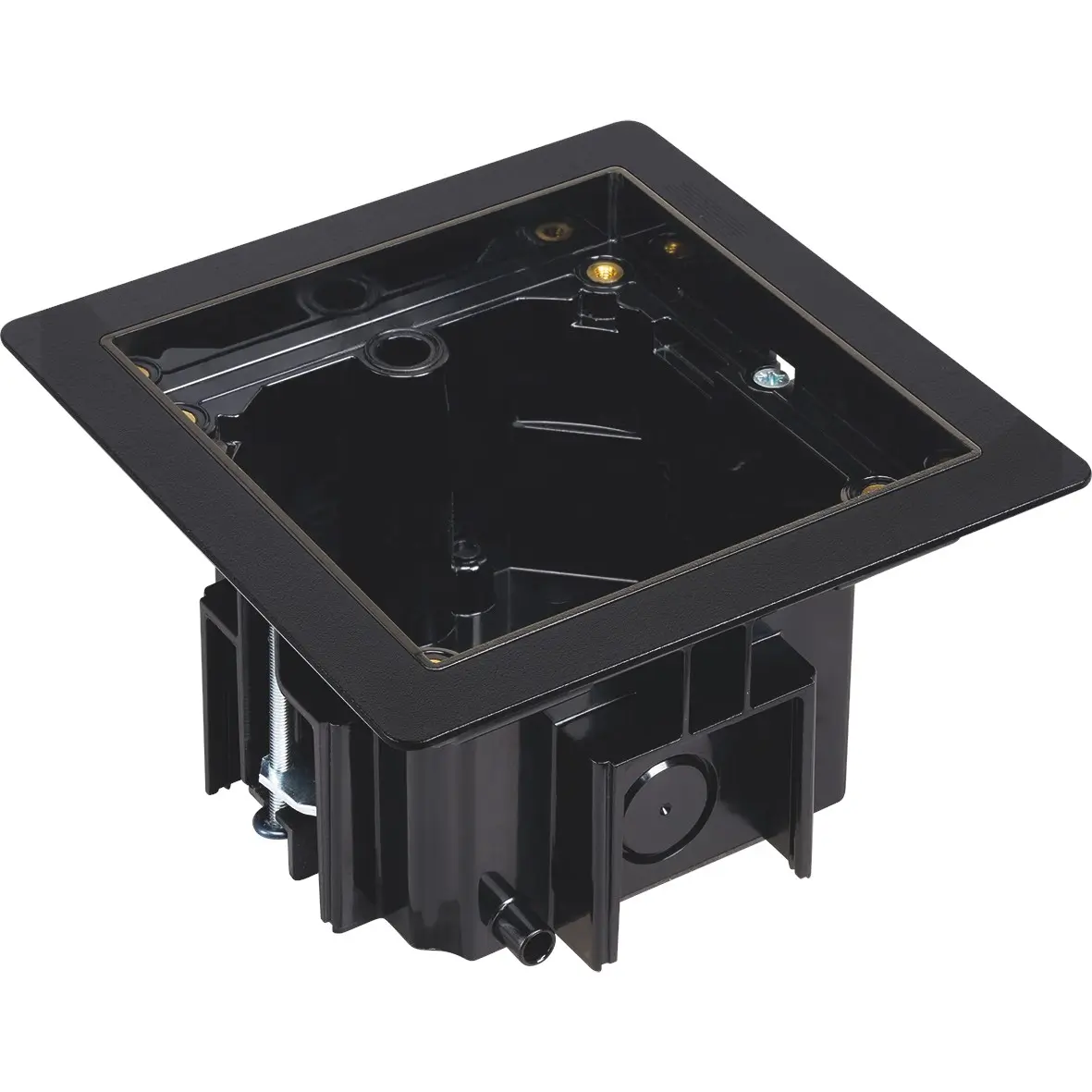

KGT100RF/74 – Raised Floor Back Box – Black

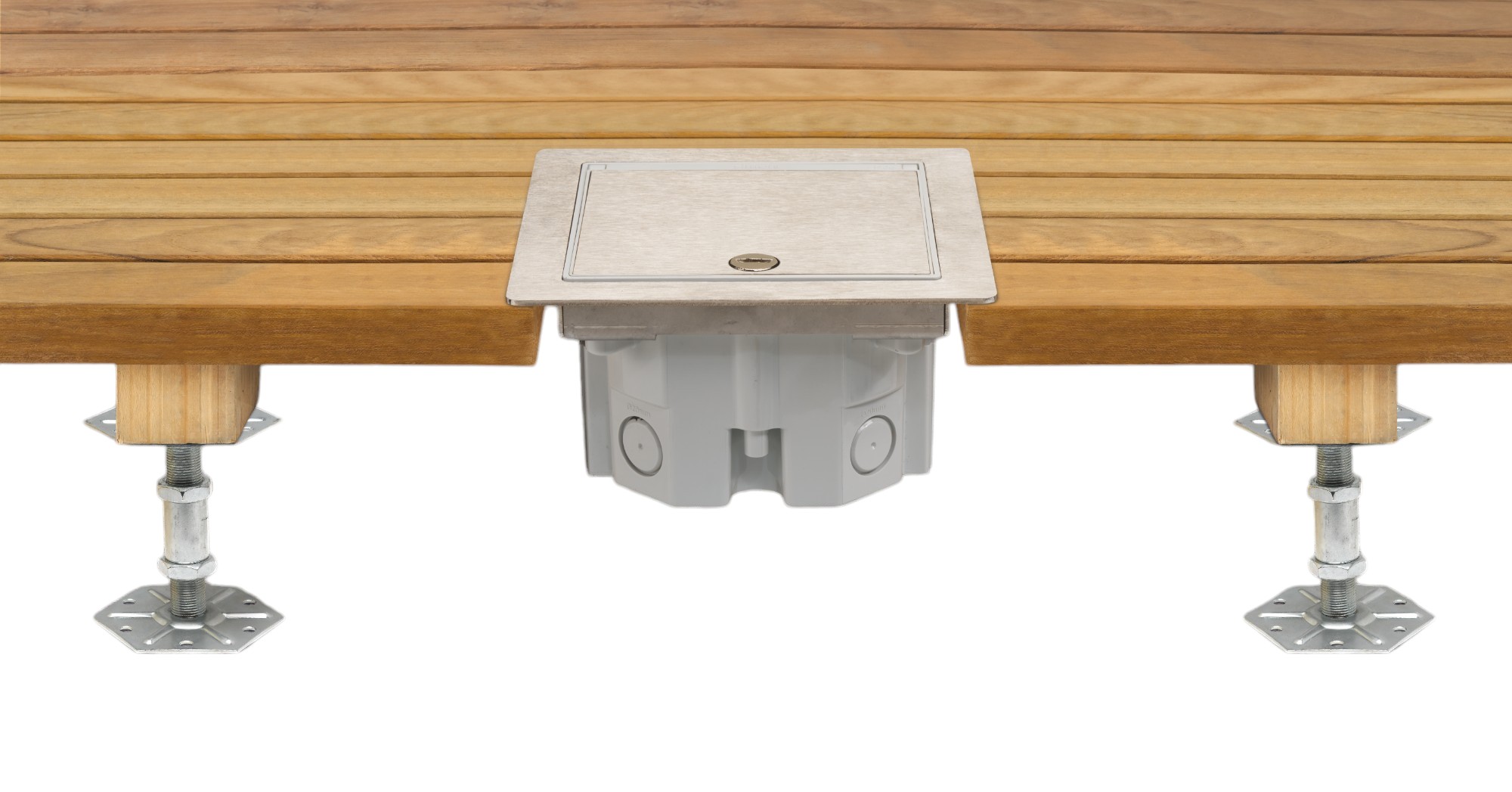

The SIMON-BOX IP66 rated floor box is ideal for floor areas which require occassional power. It provides waterproof protection when closed, allowing the floor to be wet washed. Typical SIMON-BOX projects include Airport concourse areas, shop floor display areas, hotel foyers, sports clubs, and garden decks.

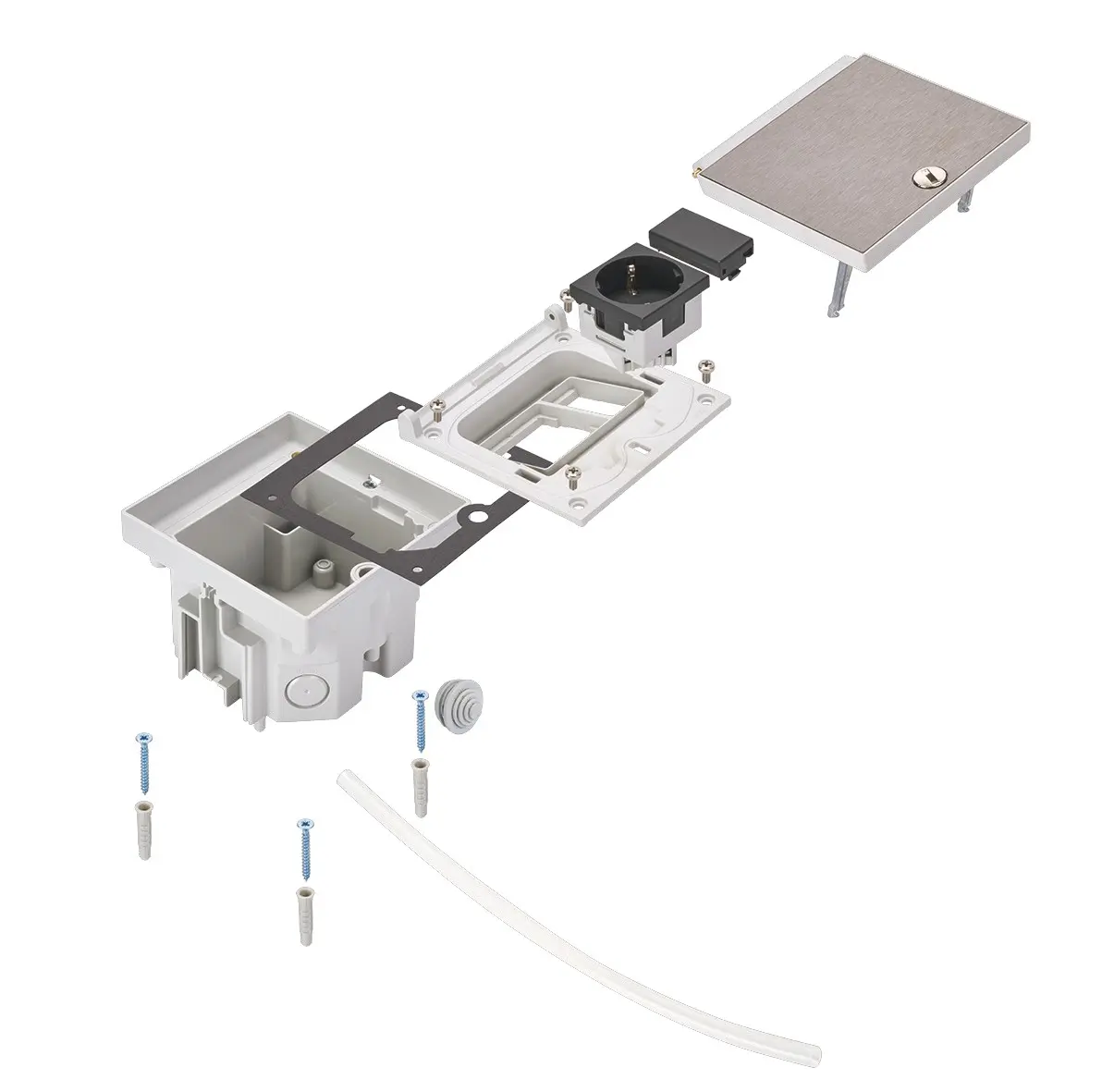

The sleek aesthetic uniformity is achieved by using the same coloured material finish in both the back box surround trim and the top section. Included with the back box is a silicon tube which forms part of the back boxes drainage system. The back boxes metal trim provides a strong low profile surround cradle. 2no. clamping arms hold the floor outlet firm in place.
The back box has 3 openings of 20mm and 1 opening 22mm in diameter.
Cut out dimensions – 125mm x 125mm
Overall dimensions – 148mm x 148mm
